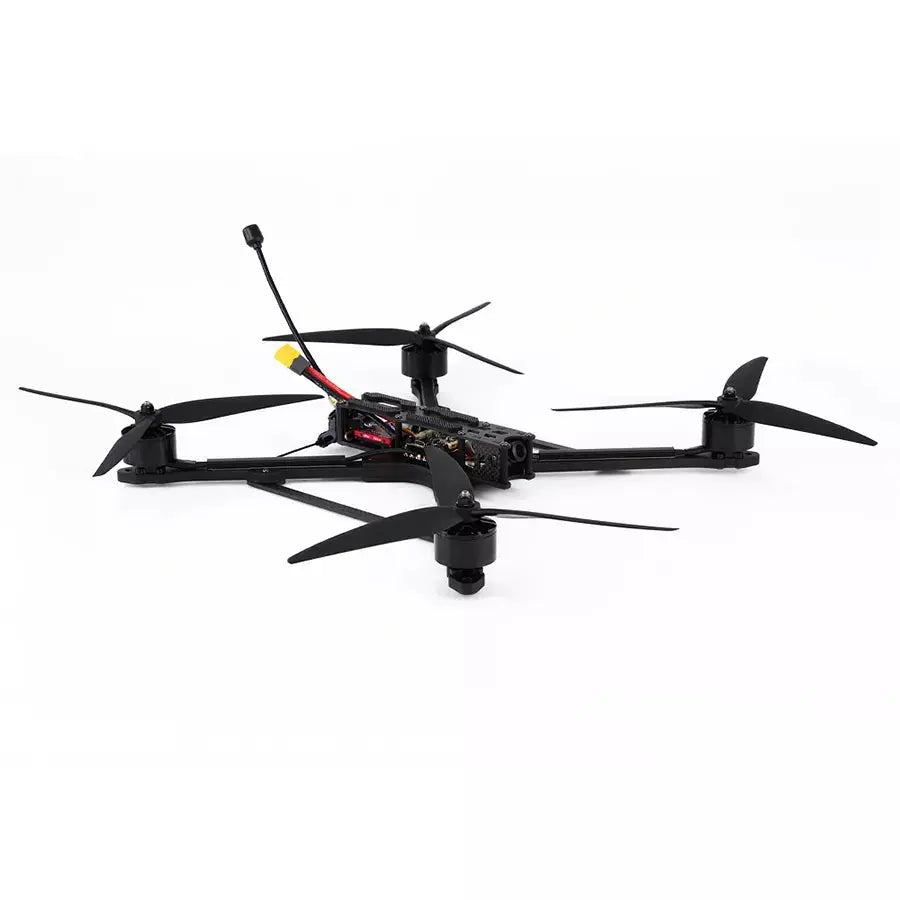

rtf racing drone with goggles Manta 10X Lite 10" FPV Drone Long Range Heavy Payload RTF Kit with Goggles

rtf racing drone with goggles Manta 10X Lite 10" FPV Drone Long Range Heavy Payload RTF Kit with Goggles10inch FPV Drone Manta 10 X Lite Long Range Heavy Payload FPV Drone RTF Flying kit with Transmitter and Flight Goggles 8000mAh Battery Charger Note: The package includes batteries, chargers, transmitters, and flight goggles, so you can fly directly after receiving the goods! Product parameters: Product name: Manta 10"X Lite Structure: True X Motor: AE3115 900KV Flytower: Argus 65A+F722 Wheelbase: 440mm Lower carbon plate: 3mm Upper carbon plate: 2mm

10inch FPV Drone Manta 10 X Lite Long Range Heavy Payload FPV Drone RTF Flying kit with Transmitter and Flight Goggles 8000mAh Battery/Charger

Note: The package includes batteries, chargers, transmitters, and flight goggles, so you can fly directly after receiving the goods!

Product parameters:
Product name: Manta 10"X Lite
Structure: True X
Motor: AE3115 900KV
Flytower: Argus 65A+F722
Wheelbase: 440mm
Lower carbon plate: 3mm
Upper carbon plate: 2mm
Material: T700
Arm thickness: 7mm
Camera width: 20mm
Flytower hole spacing: M3*30.5mm
Image transmission hole spacing: M2*20/25.5.M3*30.5
Propeller size: Max 10.0 inch
Motor hole position: M3*16/19mm
Electrical layer height: 25mm
Payload: 4kg
Flying Time: With Load Flying Time: 8-15min; No Load: 30min
Recommended battery: 8000mAh 6S
Battery: 8000mAh 6S
Charger: ToolkitRC M7AC 2-6S multi-function balance charger for aircraft model lithium batteries supports DC and AC
Flying Distance: About 10km
Max Speed: 140km/h
Max Altitude: 6000m
Packaging: 2.8kg / 450*450*150mm

Transmitter：
Item: Radiomaster TX12 MK II
Frequency: 2.400GHZ-2.480GHZ
RF Chip: ExpressLRS (ELRS)
Working Current: [email protected]
Voltage Range: 6.6-8.4v DC
Range: > 2km (depending on receiver)
Radio Firmware: ELRS Version: EdgeTX (Transmitter) / ExpressLRS (RF module), CC2500 Verison: EdgeTX (Transmitter) / MPM (RF module)
Channels: Up to 16 (depending on the receiver)
Display: 128*64 Monochrome LCD display
Gimbal: High precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging: QC3 USB-C
Weight: 363g
Size: 170*159*108mm

Flight Goggles：
Model: LS-800D
Video input: NTSC
Media format: jpg, png, JPEG, AVI, MOV, other
Resolution: 854X480
Screen size: 5.0 inches
Material: plastic
Additional functions: USB charging
Product weight: 690 grams (including packaging)
Wearing method: head-mounted
Memory: supports 128G expansion
Battery: 3.7V 2000mah (built-in)
Operating system: other
Appearance size: 180*145*82mm
Packing list: charger, two antennas, whole machine, data cable

Frame: 10-inch Carbon
Structure: True X
Wheelbase: 440mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Carbon Plate Material: T300/T700
Height of Electronic Device Layer: 25mm
Arm Thickness: 7mm
Camera Spacing: 20mm
Stack Mounting Hole: M3*30.5mm
VTX Mounting Hole: 1M2*20/25.5.M3*30.5mm
Propeller Installation Size: Max 10.0 inch
Motor Mounting Hole: 16mm16mm/19mm19mm
Top Plate Size: 21.6*5cm
Bottom Plate Size: 22.3*10.8cm

Motor: 3115  900KV
KV Value: 900KV
Operating Rated Voltage: 3-6S
No-load Current: 1.28A/ 12V
Phase Resistance: 38mΩ
Motor Weight: 112.3g
Maximum Current: 64.7A
Maximum Power: 1617 W
Maximum Thrust: 4185g
Motor Size: Ф37.1*32.1mm

Flight Control: F405
Size: 37×37mm
Mounting Holes: 30.5×30.5mm
9V: 9V regulated power supply output interface, max current 2A
5V：5V regulated power supply output interface, maximum current 3A
4.5V：Receiver power connector (USB power supply only)
CR: Current monitoring port
M1: camera reference pin (according to the flight control firmware version)
VI: Camera input port
VO: Graphic output interface
LED: RGB light strip interface
B-：Connect to the negative terminal of the buzzer, positive terminal connects to B+
RC: Receiver SmartPort interface
Rssi: Rssi signal input port

ESC: 60A-6S
Model: BLHeli_S 4IN160V1
Continuous Current: 60A
Burst Current: 70A (10s)
BEC: No
Current Sensor: Yes
Battery Cells: 2-6S
Weight: 21.5g
Size: 37*42.7mm
Mounting Hole Spacing: 30.5*30.5mm

Camera: B19 Product Manual Cam 1500TVL
Model: HD 1500TVL (upgraded version, with OSD tuning board)
Image Sensor: 1 / 3′CMOS
Pixels: 1500TVL
Lens: 2.1mm
Signal System: PAL / NTSC (adjustable via OSD)
Signal-to-Noise Ratio: ＞60Db（AGC OFF）
Electronic Shutter Speed: PAL: 1 / 50-100.000; NTSC: 1 / 60-100,000
Electronic Shutter: PAL: 1/50 - 100,000; NTSC: 1/60 - 100,000"
Automatic Gain Control (AGC: Low/Medium/High
Backlight Compensation (BLC): Yes
Minimum Illumination: 0.001Lux / 1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B&W
Power Supply: DC 5V-30V

Image transmission VTX: 5.8G 40CH 2.5W
Supported Voltage: 7-28V
BEC: 5V / 500mA
Transmission Power: 25mW / 13.95dBm; 2500mW / 34.04dBm
Antenna Interface: MMCX
Output Power: PIT / 25 / 2500mW
Standard 40 Channels: A / B / E / F / R
Video Transmission Protocol: SmartAudio
Mounting Holes: 20X20.M2
Size: 25mmX37mmx6.5mm
Weight: 19g

Antenna: 5.8G RHCP 150MM
*The whole is made of imported PC+ABS material which can withstand high strength impact.
*Impact resistant double-sheathed semi-rigid cable.
*Root reinforcement design, 360 ° protection.

RX: ELRS 915MHz
Processing Chip: ESP8285
RF Chip: SX1276IMLTRT
Power Input: 5V
Operating Current: 100mA
Operating Protocol: CSRF
Receiving Frequency Range: 915MHz or 868MHz
Size: 12mm12mm3mm
Weight: 0.6g (without antenna)
Antenna Connector: IPEX1
Telemetry Output Power: <17dBm
Firmware Update Method: WIFI

Propellers: Gemfan Prop 1050
Type: 1050
Blades: 3
Material: Fiberglass Nylon
Pitch: 5in
Center Hole lnner diameter: 5mm
Weight/g: 17g

Be aware:
*O3 or LINK VTX of the drone has been activated for better testing.
*If activation is not required, please note when placing an order.

Recommended Configuration:
Camera: Caddx Ratel
Antenna: 5.8G RHCP
RX: TBS / ELRS 2.4G / No RX
VTX: Analog 5.8G (1.6w or 2.5w) / Analog 1.2G / Link HD / DJI O3
FC: Axisflying Argus ECO F405
ESC: Axisflying Argus 60A 8bit
MOTOR: Axisflying 3115 900kv
Props: GemFan 1050

Performance:
Payload：4 kg
Flying time：About 10 minutes (based on the test results of a 3.5kg load and a 6S 8000mAh battery, you can upgrade to a larger capacity battery)

**We are the source manufacturer, welcome to purchase in bulk!
